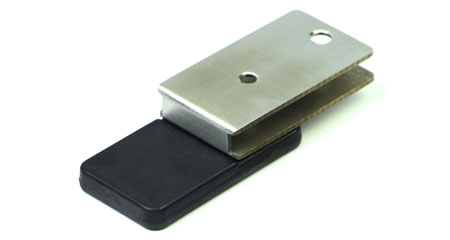

OPP IOT offers a wide types of RFID tags for asset tracking across different industries and applications. OPP5427 is a on-metal RFID tag specially designed for Manhole cover asset tracking.
Our OPP5427 Manhole cover with built-in rfid tag are Water-proof, anti-corrosion,Anti-vibration and easy maintenance,it can be applied on oil, dust, rain and other bad environment.
We can read the data of RFID tags that installed in devices by handheld Reader without opening the cover of devices. Meanwhile, We can quickly hold the key information of Manhole Cover and the status of the lost Manhole Cover.
Thus, adopting RFID tags OPP5427 as asset identifier can solve the problem of manhole cover theft and tracking its real-time status.
| Functional Specifications: |
| RFID Protocol |
EPC Class1 Gen2, ISO18000-6C |
| Frequency (MHz) |
US:902-928 ; EU:865-868 |
| IC type |
Impinj Monza R6 |
| Chip Memory |
EPC 128bits , USER 64bits, TID96bits |
| Write Cycles |
100,000times |
| Functionality |
Read/write |
| Data Retention: |
Up to 50 Years |
| Application Surface |
Manhole Cover |
| Reading Range(Fixed Reader) |
US (902-928MHz) 2.5 Meters |
| EU (865-868MHz) 2.5 Meters |
| Reading Range(handheld Reader) |
US (902-928MHz) 1.6Meters |
| EU (865-868MHz) 1.5Meters |
| Warranty |
1 Year |
| PPS Tag Size |
54x27x6mm |
| PPS Tag + Stainless Steel |
74x27x15mm |
Material
|
PPS + Stainless Steel |
| Mounting Methods |
Rivet, Adhesive |
| Weight for PPS Tag |
12g |
| Weight for PPS Tag + Stainless Steel |
41g |
| Enivironmenal Specification: |
| IP Rating |
IP68 |
| Storage Temperature |
-30°С to +75°С |
| Operation Temperature |
-30°С to +75°С |
| Certifications |
Reach Approved, RoHS Approved, CE Approved
|
